Detail
VIRA D-SK 2000 is a new-generation on-off level control and alarm system for steam boilers. The system controls the feedwater pump according to boiler-water level and provides high and low level alarm functions for reliable boiler operation.
Conductivity-Type Level Measurement

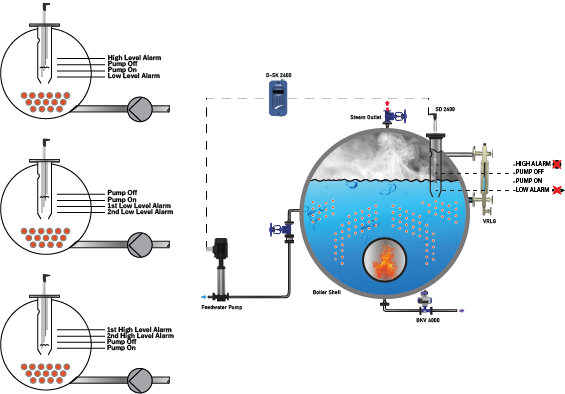

The system uses the SD 2400 conductivity-type level probe to detect defined boiler-water levels. The controller starts the feedwater pump at the low level and stops it when the required high level is reached, supporting controlled boiler-water management.
Modern Controller Design
The D-SK 2400 controller operates with a 24VDC supply and is available in DIN-rail and panel-mount versions. Its modern design supports flexible integration into boiler control panels and new equipment designs.
Clear Indication and Operator Functions
A 7-segment display provides clear local status indication. Dedicated test and reset buttons support operator checks and controlled intervention, while the automatic latching function supports the required alarm response during operation.
Integrated Control and Alarm Functions
D-SK 2000 combines on-off feedwater pump control with high and low water-level alarm functions in one system. This approach supports practical installation, monitoring and operation in steam boiler applications.
Key Features
- 24VDC D-SK 2400 controller
- SD 2400 conductivity-type level probe
- On-off feedwater pump control
- High and low water-level alarm functions
- 7-segment display
- Test and reset buttons
- Automatic latching function
- DIN-rail and panel-mount controller options
Technical Support and Quotation
Contact VIRA for product selection, technical documentation and quotation support for your steam boiler application.
| Supply Voltage | 24 VDC |
| Control Functions | On-off feedwater pump control, configurable high-level and low-level alarms, and configurable latching function |
| Input | SD 2400 four-electrode conductivity level probe and ground connection |
| Outputs | 1 feedwater pump relay and 2 alarm relays |
| Display & Operation | Seven-segment display with Test and Reset functions |
| Mounting & Protection | Panel-mounted or DIN-rail mounted flame-retardant polycarbonate enclosure, IP40 |
| Maximum Ambient Temperature | 55 °C |
| Process Connection | G 1″ threaded connection; NPT option available |
| Electrode Configuration | Four-electrode conductivity probe for level control and alarm functions |
| Probe Length | 500 mm, 1,000 mm or 1,500 mm; cut to the required insertion length before installation |
| Pressure Rating | PN40; maximum operating pressure 32 bar(g) |
| Temperature Limits | Maximum operating temperature 239 °C; maximum ambient temperature 75 °C |
| Application | Steam boiler water-level control and high-low level alarm applications |
