Detail

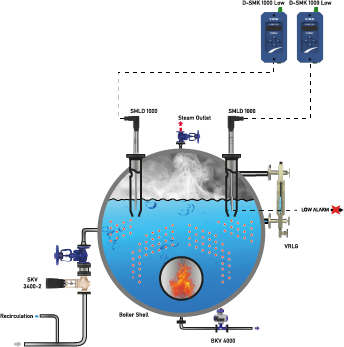

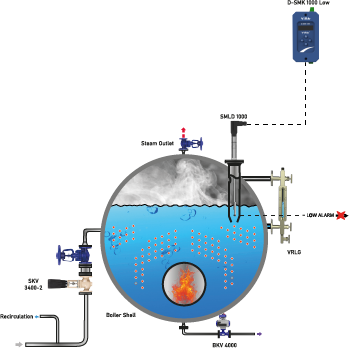

The D-SML 1000 is Vira’s next-generation safety system designed to detect and limit low water level in steam boilers. Its self-monitoring architecture ensures high reliability and operational safety. Suitable for both DIN rail and panel mounting, it operates with 24VDC. Compliant with EN 12952 and EN 12953, it is ideal for use in industrial and marine boiler applications.
| Controller | : | D-SMK 1000 Low |
| Supply Voltage | : | 24VDC |
| Functions | : | Self Monitoring Low Level |
| Input | : | Level Probe Input (Ct1, Ct1), Ground |
| Outputs | : | 1 Safety Relay, 1 Alarm Relay |
| Display | : | 7 Segment |
| Button | : | 4 Pieces (Test, Reset, Menü, Set) |
| Max. Ambinent Temp. | : | 55 ºC |
| Enclosure | : | PC |
| Type | : | Panel and Dın Rail |
| IP Class | : | IP 40 |
| Probe | : | SMLD 1000 |
| Connection and Size | : | Threaded - G1/2'' BSPT (Optional NPT) |
| Nominal Pressure | : | PN 40 |
| Length | : | 500-1000-1500 mm |
| Max. Operat. Press. | : | 32 Bar g |
| Max. Operat. Temp. | : | 239 ºC |
| Max. Ambinent Temp. | : | 75 ºC |
| The length of the probe can be cut to desired level |
