Detail

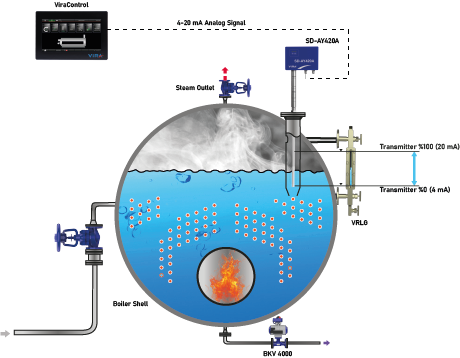

VIRA SD-AY 420A is a capacitive level transmitter designed to provide continuous level information through a 4–20 mA analogue output. It performs level measurement and signal transmission; it does not control pumps, valves or other equipment.
Capacitive Level Measurement
The transmitter measures level according to the capacitive measurement principle and provides a 4–20 mA signal representing the measured level value. This enables continuous level information to be transferred to the relevant control or monitoring system.
Local Minimum and Maximum Calibration
Minimum and maximum measurement points can be calibrated directly using the MIN, MAX and SET buttons. This allows the measurement range to be adjusted according to the required application level range.
Output and Supply Options
The SD-AY 420A provides an active 4–20 mA output as standard. A passive output option is also available. The transmitter operates with 24VDC supply, with a 220VAC supply option available.
Robust Construction and Project-Specific Length
The transmitter has an aluminium enclosure and a PN 40 pressure class. It can be manufactured in project-specific lengths according to the required installation dimensions.
Key Features
- Capacitive level measurement principle
- Continuous 4–20 mA analogue level information
- Active 4–20 mA output as standard
- Passive output option
- MIN, MAX and SET button calibration
- 24VDC supply
- 220VAC supply option
- PN 40 pressure class
- Aluminium enclosure
- Project-specific probe lengths
| Measurement Principle | Capacitive level measurement |
| Function | Continuous level measurement and analogue signal transmission |
| Analogue Output | 4–20 mA active output; passive output option available |
| Supply Voltage | 24 VDC; 220 VAC option available |
| Calibration | Minimum and maximum level calibration via Min, Max and Set buttons |
| Pressure Rating | PN40 |
| Enclosure | Aluminium enclosure |
| Probe Length | Manufactured in project-specific lengths |
