Detail

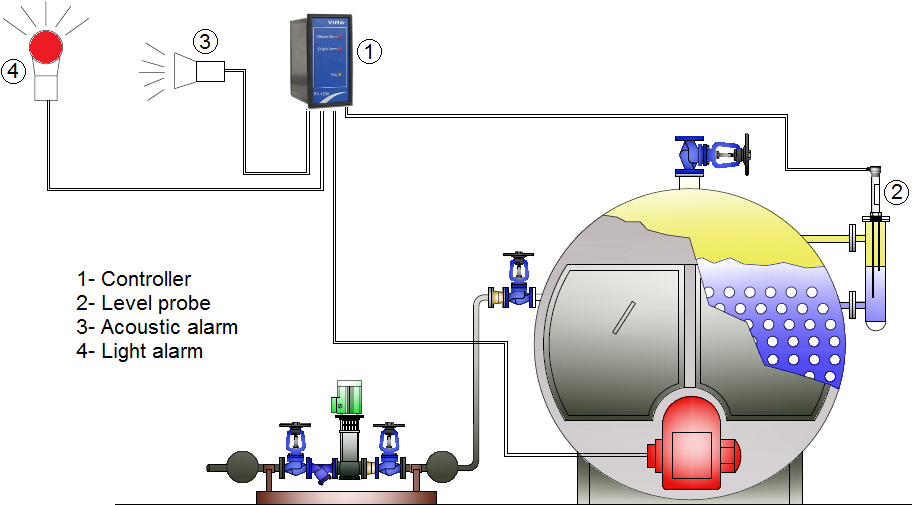

VIRA SK 1000 is a panel-mounted level alarm system for steam boilers. The set comprises the SK 1200 controller and the SD 1200 conductivity-type level probe. It provides high and low water level alarm functions for reliable monitoring of boiler water level conditions.
High and Low Water Level Alarm

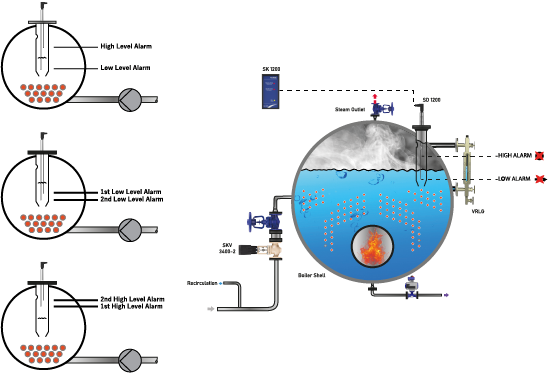

The SK 1000 monitors the boiler water level and provides alarm indication when high or low water level conditions are detected. This helps operators recognise critical level conditions in the steam boiler system.
Conductivity-Type Level Detection
The system uses the SD 1200 conductivity-type probe to detect level conditions in conductive boiler water. This measurement principle supports reliable high and low water level alarm indication.
LED Status and Alarm Indication
The SK 1200 controller features LED indicators for clear local display of operating and alarm status. The indication enables the boiler water level alarm condition to be monitored directly from the control panel.
Panel-Mounted Controller
The SK 1200 controller is designed for panel mounting. This configuration provides clear front-panel indication for boiler control panel applications.
220VAC Supply
The SK 1000 operates with a 220VAC supply and provides a proven solution for steam boiler applications requiring high and low water level alarm functions.
Key Features
- SK 1200 panel-mounted controller and SD 1200 conductivity-type level probe
- 220VAC supply
- High water level alarm function
- Low water level alarm function
- LED status and alarm indication
- Panel-mounted controller design
- Level alarm solution for steam boilers
| Controller | : | SK 1200 |
| Supply Voltage | : | 230 VAC |
| Functions | : | High Level Alarm, Low Level Alarm |
| Input | : | Level Probe Input (2 Level), Ground |
| Outputs | : | 2 Alarm Relays |
| Display | : | Led |
| Max. Ambient Temp. | : | 32 bar |
| Enclosure | : | PA |
| Type | : | Panel |
| IP Class | : | IP 40 |
| Probe | : | SD 1200 |
| Connection and Size | : | Threaded - G '' BSPT (Optional NPT) |
| Nominal Pressure | : | PN 40 |
| Length | : | 500-1000-1500 mm |
| Max. Operat. Press. | : | 32 Bar (g) |
| Max. Operat. Temp. | : | 239 °C |
| Max. Ambient Temp. | : | 75 °C |
| The length of the probe can be cut to desired level |
