Detail
VIRA SK-T 1200 is a single, compact boiler-mounted level alarm system for steam boilers. Housed in an aluminium enclosure, it integrates SK 1200 control and SD 1200 conductivity-type level detection in one product, providing high and low water level alarm indication with 220VAC supply.

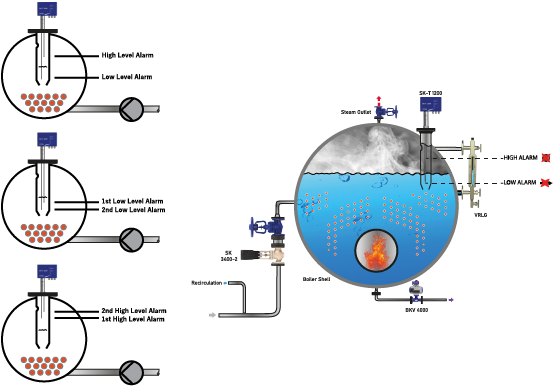

High and Low Water Level Alarm
The SK-T 1200 monitors critical water level conditions in steam boilers and provides both high and low water level alarm functions. It helps operators identify abnormal water level conditions through clear local alarm indication.
Conductivity-Type Level Detection
The system uses conductivity-type level detection for conductive boiler water. This measurement principle supports reliable level alarm indication for high and low water level conditions.
Compact Boiler-Mounted Design
All functional elements are integrated into a single aluminium enclosure for direct boiler-mounted installation. This compact arrangement provides a practical solution where level alarm indication is required directly on the boiler.
LED Status Indication
LED indicators provide clear local visibility of the system and alarm status, enabling the operating condition to be checked directly at the installation point.
220VAC Supply
The SK-T 1200 operates with a 220VAC supply and is designed for steam boiler applications requiring high and low water level alarm indication.
Key Features
- Single integrated compact level alarm system
- Integrated SK 1200 control and SD 1200 conductivity-type level detection
- Direct boiler-mounted installation
- Aluminium enclosure
- High and low water level alarm functions
- LED status and alarm indication
- 220VAC supply
| Compact Unit | : | SK-T 1200 |
| Supply Voltage | : | 230 VAC |
| Functions | : | High Level Alarm, Low Level Alarm |
| Input | : | Level Probe Inpu (2 Level), Ground |
| Outputs | : | 2 Alarm Relay |
| Display | : | Led |
| Enclosure | : | Aluminum |
| Type | : | Boiler top mounted |
| IP Class | : | IP 65 |
| Connection and Size | : | Threaded - G 1'' BSPT (Optional NPT) |
| Nominal Pressure | : | PN 40 |
| Length | : | 500-1000-1500 mm |
| Max. Operat. Press. | : | 32 Bar g |
| Max. Operat. Temp. | : | 239 °C |
| Max. Ambient Temp. | : | 75 °C |
| The length of the probe can be cut to desired level |
