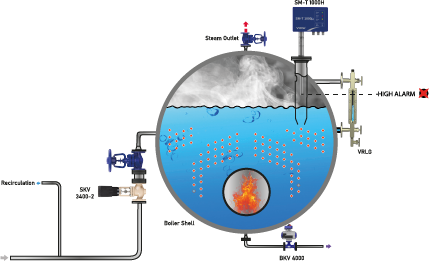

The SM-T 1000H is a compact version of the D-SMH 1000 system, designed to limit high water levels in steam boilers. Combining the controller and probe in a single enclosure, it provides space-saving installation and ease of use. The SM-T 1000H features self-monitoring technology for high operational reliability. Fully compliant with EN 12952 and EN 12953, it is the ideal choice for boiler installations where space is limited.
| Compact Unit | : | SM-T 1000H |
| Supply Voltage | : | 230 VAC |
| Functions | : | Self Monitoring High Level |
| Input | : | Level Probe Input, Ground |
| Outputs | : | 1 Safety Relay, 1 Alarm Relay |
| Display | : | Led |
| Button | : | 2 Pieces (Test and Reset) |
| Enclosure | : | Aluminum |
| Type | : | Boiler top mounted |
| IP Class | : | IP 65 |
| Connection and Size | : | Threaded - G 1/2'' BSPT (Optional NPT) |
| Nominal Pressure | : | PN 40 |
| Length | : | 500-1000-1500 mm |
| Max. Operat. Press. | : | 32 Bar g |
| Max. Operat. Temp. | : | 239 °C |
| Max. Ambient Temp. | : | 75 °C |
| The length of the probe can be cut to desired level |
