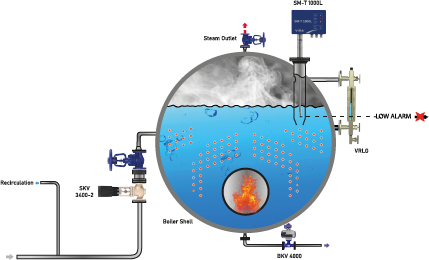

The SM-T 1000L is a compact version of the D-SML 1000 system, designed for low water level limiting in steam boilers. Combining the controller and probe in a single housing, it offers easy installation and space efficiency. The SM-T 1000L features a self-monitoring electronic design that ensures high reliability. Fully compliant with EN 12952 and EN 12953 standards, it is an ideal solution for boiler applications with limited installation space.
| Compact Unit | : | SM-T 1200L |
| Supply Voltage | : | 230 VAC |
| Functions | : | Self Monitoring Low level |
| Input | : | Level Probe Input (Ct1, Ct2), Ground |
| Outputs | : | 1 Safety Relay, 1 Alarm Relays |
| Display | : | Led |
| Button | : | 2 Pieces (Test and Reset) |
| Enclosure | : | Aluminum |
| Teyp | : | Boiler top mounted |
| IP Class | : | IP 65 |
| Connection and Size | : | Threaded - G 1/2'' BSPT (Optional NPT) |
| Nominal Pressure | : | PN 40 |
| Length | : | 500-1000-1500 mm |
| Max. Operat. Press. | : | 32 Bar |
| Max. Operat. Temp. | : | 239 ºC |
| Max. Ambient Temp. | : | 75 ºC |
| The length of the probe can be cut to desired level |
