Detail

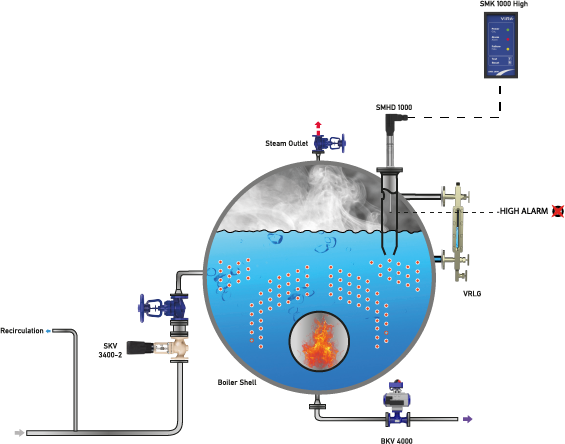

VIRA SMH 1000 is a self-monitoring high level limiter system for steam boilers. The system comprises the SMK 1000 High Level Limiter Controller and the SMHD 1000 High Level Limiter Probe. It provides reliable high water level monitoring and alarm protection to support safe boiler operation when the water level reaches a critical high condition.
High Water Level Protection
The SMH 1000 monitors the boiler water level and generates an alarm signal when a high water level condition is detected. This enables the required protective action to be taken and supports reliable monitoring of critical high water level conditions.
Self-Monitoring Fail-Safe Architecture
The system uses a fail-safe, redundant and self-monitoring architecture. Its operating condition is continuously monitored, supporting fault detection for open circuit, short circuit, leakage and probe contamination conditions.
SIL 2/3 Capable Design
The SMH 1000 features a SIL 2/3 capable architecture for applications requiring a self-monitoring high level limiter solution in steam boiler safety systems.
LED Indication, Test and Reset
LED indicators provide clear local status and alarm indication. Dedicated test and reset functions support routine functional checks and controlled operator action following an alarm condition.
220VAC Supply
The SMH 1000 operates with a 220VAC supply and is suitable for steam boiler installations designed for up to 72 hours of unattended operation, subject to the requirements of the complete boiler system and local regulations.
Key Features
- SMK 1000 High Level Limiter Controller and SMHD 1000 High Level Limiter Probe
- 220VAC supply
- High water level alarm and limiter function
- SIL 2/3 capable architecture
- Fail-safe, redundant and self-monitoring structure
- Open circuit, short circuit, leakage and contamination fault monitoring
- LED status and alarm indication
- Test and reset functions
- Suitable for boiler rooms designed for up to 72 hours of unattended operation
| Controller | : | SMK 1000 High |
| Supply Voltage | : | 230 VAC |
| Functions | : | Self Monitoring High Level |
| Input | : | Level Probe Input, Ground |
| Outputs | : | 1 Safety Relay, 1 Alarm Relay |
| Display | : | Led |
| Button | : | 2 Pieces (Test and Reset) |
| Max. Ambient Temp. | : | 55 ºC |
| Enclosure | : | PA |
| Type | : | Panel |
| IP Class | : | IP 40 |
| Probe | : | SMHD 1000 |
| Nominal pressure | : | PN 40 |
| Length | : | 500-1000-1500 mm |
| Max. Operat. Press. | : | 32 Bar (g) |
| Max. Operat. Temp. | : | 239 °C |
| Max. Ambient Temp. | : | 75 °C |
| The length of the probe can be cut to desired level |
