Detail

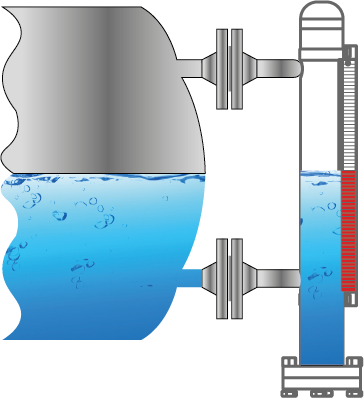

VIRA Boiler-Type Magnetic Level Gauge provides continuous, direct visual indication of liquid level in steam boilers, pressure vessels and industrial process applications. Its bypass chamber is connected to the vessel, allowing the level inside the chamber to follow the actual liquid level in the equipment.
Magnetic Float Operating Principle
A magnetic float moves inside the sealed bypass chamber as the liquid level rises or falls. The magnetic movement is transferred to an external visual indicator, providing clear local level indication without direct contact between the process fluid and the external indication system.
Switch and 4–20 mA Output Options
In addition to visual indication, the magnetic level gauge can be configured with monostable or bistable level switches for point-level signalling and control functions. It can also be supplied with a 4–20 mA continuous level output for connection to PLC, DCS, BMS or other automation systems.
Reliable Level Monitoring for Steam Boilers
The boiler-type magnetic level gauge supports routine observation of boiler water level and helps operators verify operating conditions quickly. Its mechanical principle provides dependable local indication without electrical power, while optional switches and analogue output enable integration into control and monitoring systems.
Application-Specific Configuration
The appropriate configuration is selected according to operating pressure and temperature, fluid properties, vessel connection arrangement, centre-to-centre distance, required indication length and automation requirements. VIRA provides technical support for new boiler projects, replacements and industrial applications.
Typical Applications
- Steam boilers and boiler auxiliary equipment
- Pressurised vessels and process tanks
- Feedwater and condensate systems
- Industrial liquid-level monitoring and automation applications
Contact the VIRA team for technical support in selecting the appropriate magnetic level gauge configuration for your application.
| Body and Float | : | Stainless Steel |
| Gauges Profile | : | Aluminium |
| Gauges Flaps | : | Fiber Glass Reinforced Plastic |
| Flanges | : | ST 37.2 Carbon Steel |
| Connection | : | Flanged/ DN 20 - PN 16 |
| Pressure Class | : | PN 16 |
| Max. Working Temp. | : | 200 °C |
