Level Gauges

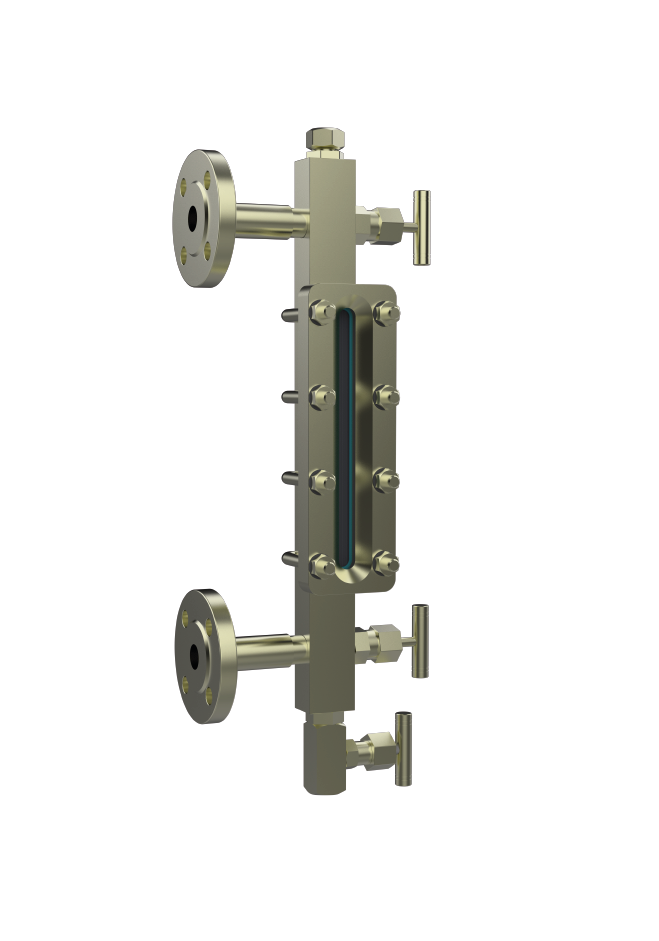

Reflex Level Gauge
VIRA Reflex Level Gauges provide clear and reliable boiler-water level indication for steam boilers and pressurised process equipment. Featuring borosilicate reflex glasses, graphite gaskets, purpose-designed isolation valves and a corrosion-resistant zinc-plated surface, they are rated for PN 40 pressure class and operating temperatures up to 250°C.
Detail
Boiler Type Magnetic Level Gauge
Boiler-type magnetic level gauge for safe, continuous visual indication of water level in steam boilers and pressurised vessels, configurable with level switches or 4–20 mA output.
Detail
VIRA level gauges provide clear, local and dependable visual indication of liquid level in steam boilers, pressure vessels and industrial process equipment. Selecting the appropriate level gauge helps operators monitor liquid level safely and supports reliable plant operation.
Reflex Level Gauges
Reflex level gauges use the optical contrast between liquid and vapour on the reflex glass to provide direct level indication. They are widely used for steam boiler applications where a clear visual indication of boiler-water level is required.
Magnetic Level Gauges
Magnetic level gauges use a sealed chamber and magnetic float arrangement to provide external level indication. Their design allows the process fluid to remain contained while the level is displayed externally, making them suitable for a wide range of vessel and process applications.
Selecting the Right Level Gauge
The correct configuration depends on operating pressure, temperature, process fluid, connection type, required measuring length and installation conditions. VIRA supports project-specific selection for steam boiler and industrial vessel applications.
